金联宇柔性拖链屏蔽电缆GRTPU是什么电缆？

发布时间：2022.10.08 浏览次数： 广东金联宇电缆实业有限公司

金联宇柔性拖链屏蔽电缆GRTPU是什么电缆？

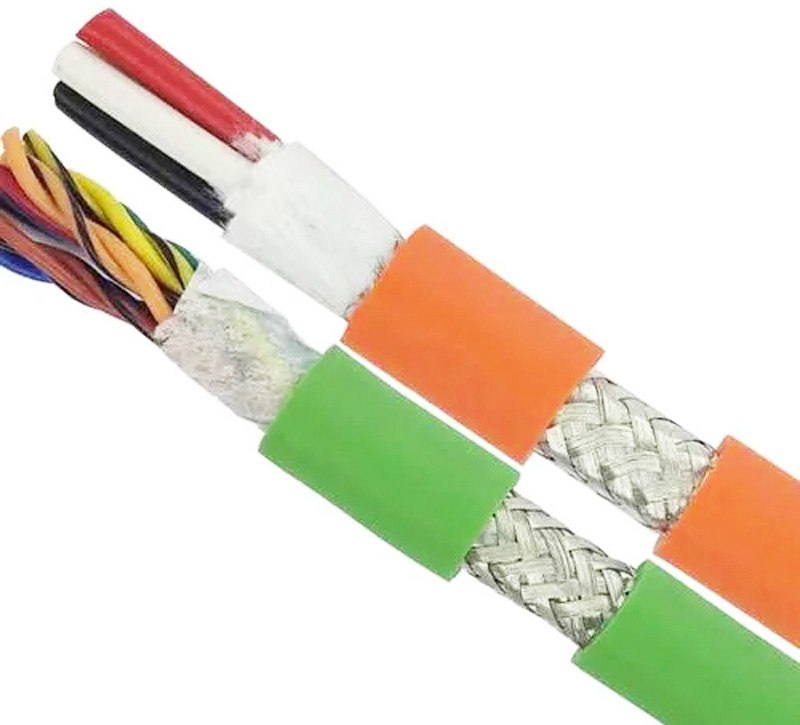

金联宇柔性拖链屏蔽电缆

GRTPU柔性拖链屏蔽电缆

产品标准 Product standard: 企业标准 Enterprise standard

适用范围 Application

本产品运用地铁地道盾构机和各类机器人，机械手的动力和控制体系的电缆，具有出色的弯曲功用。由于选用新材料电缆具有优异的耐气候性，可在很恶劣的环境中作业，作业温度-50℃至+100℃。电缆为低烟无卤环保型产品，按照日本和德国相应的电缆标准出产。

This product is suitable for power and control system cable of underground tunnel shield construction machine and all kinds of robot, manipulator and possesses good flexural properties. Being made from new material, this cable possesses excellent weatherability and can be worked at bad environment. Its temperature of work will be -50℃∽+100℃. This cable is low smoke. no halogen. environmental protection product and is produced in accordance with relative cable standard of Germany and Japan.

GRTPU控制及电力用高柔性拖链电缆 GRTPU High flexible towlin cable for control and power 额定电压300/500v,450/750v Rated Voltage:300/500v,450/750v

类型 Tpye	芯线数目×横截面 Core×Cross section n×mm2	单芯铜丝最大直径 Max.diameter of single copper wire mm	外径±5％ Outerdiameter ±5％ mm	含铜量 Copper weightper Km Kg/km
GRTPU	2×0.50	0.16	6.4	10.6	46
GRTPU	3×0.50	0.16	6.7	15.8	54
GRTPU	4×0.50	0.16	7.1	21.1	63
GRTPU	5×0.50	0.16	7.7	26.4	77
GRTPU	7×0.50	0.16	8.8	37	104
GRTPU	12×0.50	0.16	10.5	63.4	145
GRTPU	18×0.50	0.16	12	95	200
GRTPU	25×0.50	0.16	14.3	132	268

类型 Tpye	芯线数目×横截面 n×mm2	单芯铜丝直径 φmm	外径±5％ Diameter ±5％ mm	含铜量 Kg/km	电缆重量 ≈kg/km Weight of cable
GRTPU	34×0.50	0.16	15.2	179.5	349
GRTPU	50×0.50	0.16	18.5	264	364
GRTPU	61×0.50	0.16	20	322.1	443
GRTPU	2×0.75	0.16	6.8	14.4	55
GRTPU	3×0.75	0.16	7.1	21.6	62
GRTPU	4×0.75	0.16	7.6	28.8	74
GRTPU	5×0.75	0.16	8.2	36	89
GRTPU	7×0.75	0.16	9.5	50.4	121
GRTPU	12×0.75	0.16	11.3	86.4	171
GRTPU	18×0.75	0.16	13.1	129.6	239
GRTPU	25×0.75	0.16	15.8	180	329
GRTPU	34×0.75	0.16	17.5	244.8	335
GRTPU	50×0.75	0.16	20	360	596
GRTPU	61×0.75	0.16	23.5	439.2	781
GRTPU	2×1.00	0.16	7	19.2	61
GRTPU	3×1.00	0.16	7.3	28.8	70
GRTPU	4×1.00	0.16	7.9	38.4	85
GRTPU	5×1.00	0.16	8.5	48	103

类型 Tpye	芯线数目×横截面n×2 mm2	单芯铜丝直径 φmm	外径±5％ Diameter ±5％ mm	含铜量 Kg/km	电缆重量 ≈kg/km Weight of cable
GRTPU	4×2.50	0.16	10.5	96	168
GRTPU	5×2.50	0.16	11.5	120	202
GRTPU	7×2.50	0.16	13.5	168	269
GRTPU	12×2.50	0.16	16.6	288	436
GRTPU	18×2.50	0.16	19.9	432	637
GRTPU	25×2.50	0.16	25.4	600	922
GRTPU	3×4.00	0.16	11.8	115.2	207
GRTPU	4×4.00	0.16	11.9	153.6	246
GRTPU	5×4.00	0.16	13.1	192	298
GRTPU	7×4.00	0.16	16.6	268.8	413
GRTPU	3×6.00	0.21	13.4	172.8	302
GRTPU	4×6.00	0.21	14.5	230.4	368
GRTPU	5×6.00	0.21	16	288	457
GRTPU	4×10.00	0.21	17.9	384	600
GRTPU	5×10.00	0.21	19.7	480	749
GRTPU	4×16.00	0.21	20.9	614.4	856
GRTPU	5×16.00	0.21	24.2	768	1093
GRTPU	4×25.00	0.21	25.9	960	1328
GRTPU	5×25.00	0.21	28.5	1200	1620
GRTPU	4×35.00	0.21	29.2	1344	1733
GRTPU	5×35.00	0.21	32.3	1680	2113
GRTPU	4×50.00	0.21	34.3	1920	2469

GRTPUP 通诺言柔性拖链屏蔽电缆，额定电压300//500v

The company’s main products are pure copper wire

类型 Tpye	芯线数目×横截面 N×2×mm2	单芯铜丝直径 φmm	外径±5％ Diameter ±5％ mm	含铜量 Kg/km	电缆重量 ≈kg/km Weight of cable
GRTPUP	2×2×0.14	0.11	5.6	19.4	38
GRTPUP	3×2×0.14	0.11	6.4	33	52
GRTPUP	4×2×0.14	0.11	7.3	43.1	66
GRTPUP	5×2×0.14	0.11	7.9	46.3	77
GRTPUP	7×2×0.14	0.11	8.5	54	99
GRTPUP	10×2×0.14	0.11	9.9	70.7	117
GRTPUP	14×2×0.14	0.11	11.5	87.3	150
GRTPUP	18×2×0.14	0.11	12.4	107	189
GRTPUP	25×2×0.14	0.11	14.1	128.6	231

类型 Tpye	芯线数目×横截面 N×2×mm	单芯铜丝直径 φmm	外径±5％ Diameter ±5％ mm	含铜量 Kg/km	电缆重量 ≈kg/km Weight of cable
GRTPUP	2×2×0.25	0.11	6.3	34.4	54
GRTPUP	3×2×0.25	0.11	6.9	42.2	63
GRTPUP	4×2×0.25	0.11	7.9	52.1	78
GRTPUP	5×2×0.25	0.11	8.6	59.4	94
GRTPUP	7×2×0.25	0.11	9.2	69.9	122
GRTPUP	10×2×0.25	0.11	10.8	96.2	149
GRTPUP	14×2×0.25	0.11	12.6	126.1	196
GRTPUP	18×2×0.25	0.11	13.6	147	242
GRTPUP	25×2×0.25	0.11	15.7	211.2	323
GRTPUP	2×2×0.34	0.11	6.6	38.4	57
GRTPUP	3×2×0.34	0.11	7.2	47.9	70
GRTPUP	4×2×0.34	0.11	8.3	61	88
GRTPUP	5×2×0.34	0.11	9	68.6	106
GRTPUP	7×2×0.34	0.11	9.7	89.4	144
GRTPUP	10×2×0.34	0.11	11.4	114.6	169
GRTPUP	14×2×0.34	0.11	13.3	151.4	224
GRTPUP	18×2×0.34	0.11	14.6	205.9	300
GRTPUP	25×2×0.34	0.11	16.6	273.7	386
GRTPUP	2×2×0.50	0.16	7.2	47.5	70
GRTPUP	3×2×0.50	0.16	7.9	61.7	86
GRTPUP	4×2×0.50	0.16	9.1	74.5	106
GRTPUP	5×2×0.50	0.16	10	92.1	134
GRTPUP	7×2×0.50	0.16	10.8	115.6	181
GRTPUP	10×2×0.50	0.16	12.6	154.9	218
GRTPUP	14×2×0.50	0.16	15	223.8	305
GRTPUP	18×2×0.50	0.16	16.2	265.4	378
GRTPUP	25×2×0.50	0.16	18.5	255.9	490
GRTPUP	2×2×0.75	0.16	8.1	61.9	90
GRTPUP	3×2×0.75	0.16	9	79.2	111
GRTPUP	4×2×0.75	0.16	10.4	105.3	144
GRTPUP	5×2×0.75	0.16	11.3	121.3	176
GRTPUP	7×2×0.75	0.16	12.3	159.2	244
GRTPUP	10×2×0.75	0.16	14.6	232.4	311
GRTPUP	14×2×0.75	0.16	17.2	313.8	419
GRTPUP	18×2×0.75	0.16	18.6	375.4	523
GRTPUP	25×2×0.75	0.16	21.8	484.6	689
